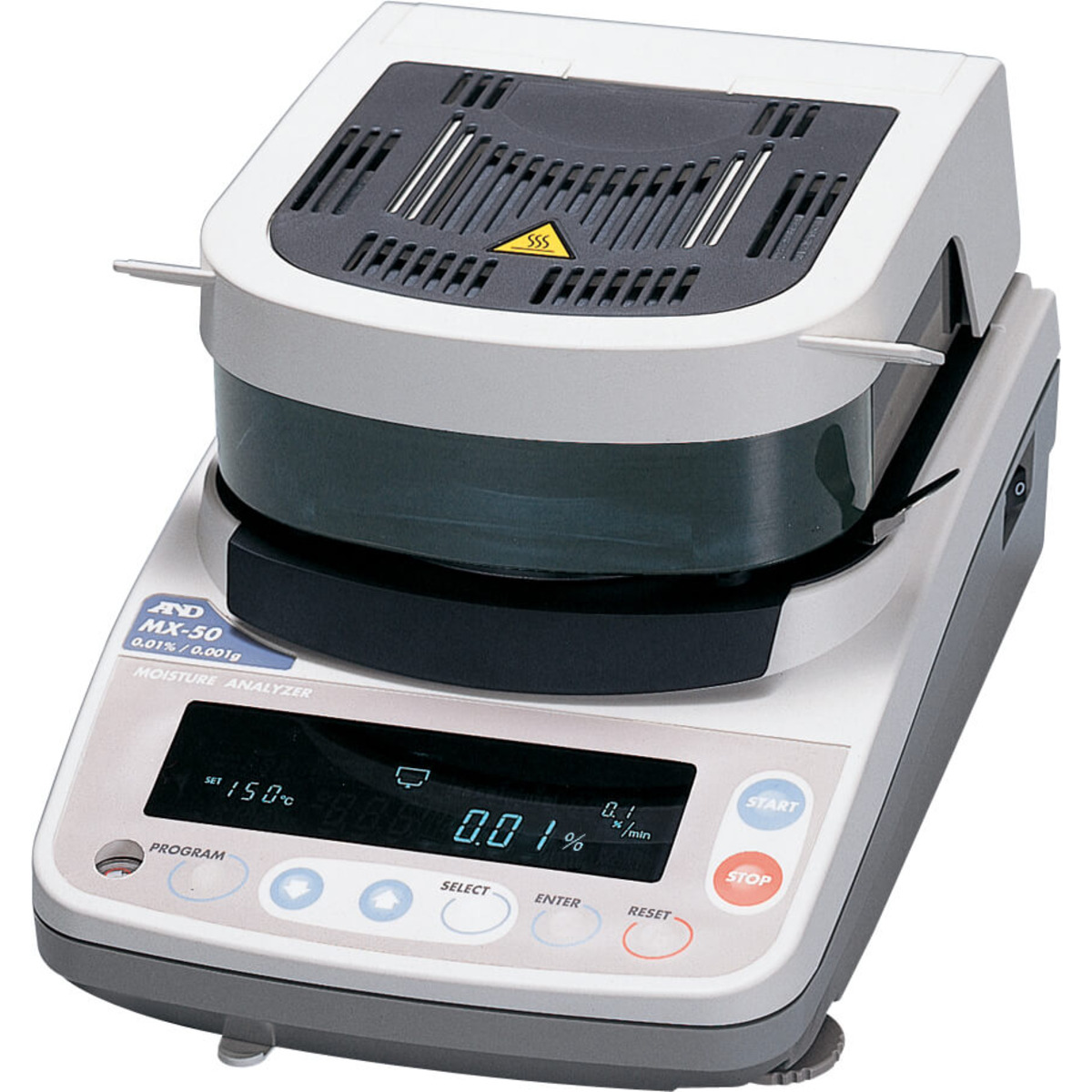

A&D – Moisture Analyzers – MX Series
Select the best moisture analyzer for your application
The development of the MX series of moisture analyzers has shown us that to succeed in existing markets it is crucial to challenge the status quo, pursue the necessary performance standards and underlying needs of products, and propose concrete solutions.
Technical Specifications
| MX-50 | |
|---|---|
| Measurement Method | 400W straight halogen lamp heating system with SRA filter and SHS weighing technology |
| Max Sample Weight Capacity | 51g |
| Weight Resolution | 0.001g |
| Moisture Content Display | 0.01%/0.1% |
| Memory of Measurement Programs | 20 sets |
| Display Type | Large VFD |
| Data Memory Function | 100 |
| Operating Temperature | 5-40°C (41-104°F) less than 85%RH |
| Sample Pan Size | Ø85mm |
| Power | AC 100V to 120V (3A) or AC 200V to 240V (1.5A), 50/60 Hz, Approx. 400W |
| Physical Dimension/Weight | 215(W) x 320(D) x 173(H) / Approx. 6kg |
Key Features
MX-50
- Low moisture content measurement at 10 ppm (0.001%) resolution
- Fast and uniform heating with halogen lamp and innovative Secondary Radiation Assist (SRA) technology
- High repeatability with the Super Hybrid Sensor (SHS) technology
- Calibration function for heating temperature
- Five different measurement programs
- Selectable heating patterns
- Translucent window for progress check
- Memory function for measurement conditions
- Windows Communication Tools WinCT-Moisture
