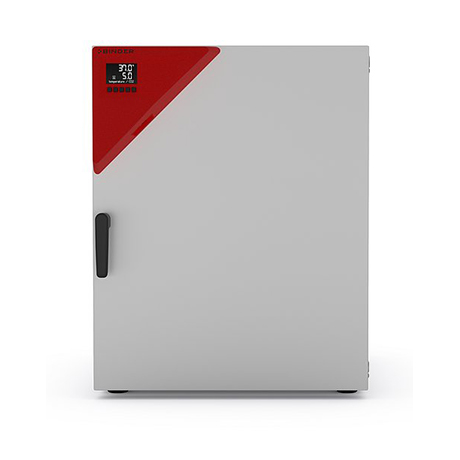

Binder – CO₂ Incubators – Series CB-S Solid.Line – With Hot Air Sterilization
The BINDER CB series CO₂ incubator is the premium class among the CO₂ incubators. It is suitable for all sensitive incubation applications and ensures optimal cell growth. A BINDER CB series CO₂ incubator can perform complex cultivation experiments as well as specific enviromental conditions.
CO₂ Incubators With Hot Air Sterilization: Easy To Clean
The incubator design features a seamless inner chamber and rounded corners, making it incredibly easy to clean. The two-part rack frame without screws adds to this, while also ensuring that the incubator is user-friendly. When CB-S series CO₂ incubators are stacked on top of one another, you get an optimum ratio between stand space and usable space, plus 300 liters of incubation capacity, allowing you to carry out your laboratory work comfortably and efficiently.
Incredibly straightforward and efficient to use, CB-S series CO₂ incubators from BINDER provide ideal, reproducible growth conditions for cell cultures. Thanks to the hot air sterilization, spores and bacteria can be killed as necessary, and cells and tissue can be cultivated safely.
CO₂ incubators with a patented humidity management system
CB series CO₂ incubators have a patented humidity management system. The Permadry double-pan humidity system provides active humidity limitation that keeps even the interior walls dry. What’s more, evaporation is kept to a minimum thanks to the high humidity.
These CO₂ incubators are incredibly user-friendly, with the option to control all of the key parameters at once using the operating panel. Measured values are recorded continually and can be exported as data sets with ease via USB. Navigation is straightforward and intuitive.
The CO₂ incubators with hot air sterilization and heat sterilizable CO₂ sensor are ideal for the incubation of delicate cells, guaranteeing optimum conditions for cell cultures along with high levels of safety and usability.
Key Features
- Maximum usable space with minimal footprint and excellent ease of use
- Minimum risk of contamination thanks to uncompromising hot-air sterilization
- Fanless, easy-to-clean hygienic interior
- Stable pH values thanks to drift-free CO₂ IR sensor technology
- Low evaporation of the medium due to high levels of humidity and quick recovery time
Technical Specifications
| Model | Housing dimensions not incl. fittings and connections W x H x D | Internal dimension W x H x D | Net weight | Interior volume |
| CB-S 170 | 680 x 870 x 715 mm | 560 x 600 x 505 mm | 90 kg | 170 L |
| CB-S 260 | 740 x 1020 x 785 mm | 620 x 750 x 575 mm | 125 kg | 267 L |
Available Models
- Temperature range: +6 °C above ambient temperature to +50 °C
- Humidity range: 90 to 95% RH
- Auto-sterilization with hot air at +180 °C
- Humidification system with condensation protection
- CO₂ gas mixing jet with Venturi effect
- CO₂ sensor with infrared technology
- LCD to display temperature and CO₂ along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Tightly sealed inner door made of tempered safety glass
- Seamless stainless steel inner chamber
- Perforated shelves, stainless steel
- Units are stackable with stacking adapter
- Troubleshooting system with visual and acoustic alarms
- Computer interface: Ethernet
- Zero-voltage alarm contact
- Can be stacked with CB model of the same size
- Temperature range: +6 °C above ambient temperature to +50 °C
- Humidity range: 90 to 95% RH
- Auto-sterilization with hot air at +180 °C
- Humidification system with condensation protection
- CO₂ gas mixing jet with Venturi effect
- CO₂ sensor with infrared technology
- LCD to display temperature and CO₂ along with additional information and alarms
- Internal data logger, measured values can be read out in open format via USB
- Tightly sealed inner door made of tempered safety glass
- Seamless stainless steel inner chamber
- Perforated shelves, stainless steel
- Units are stackable with stacking adapter
- Troubleshooting system with visual and acoustic alarms
- Computer interface: Ethernet
- Zero-voltage alarm contact
- Can be stacked with CB model of the same size

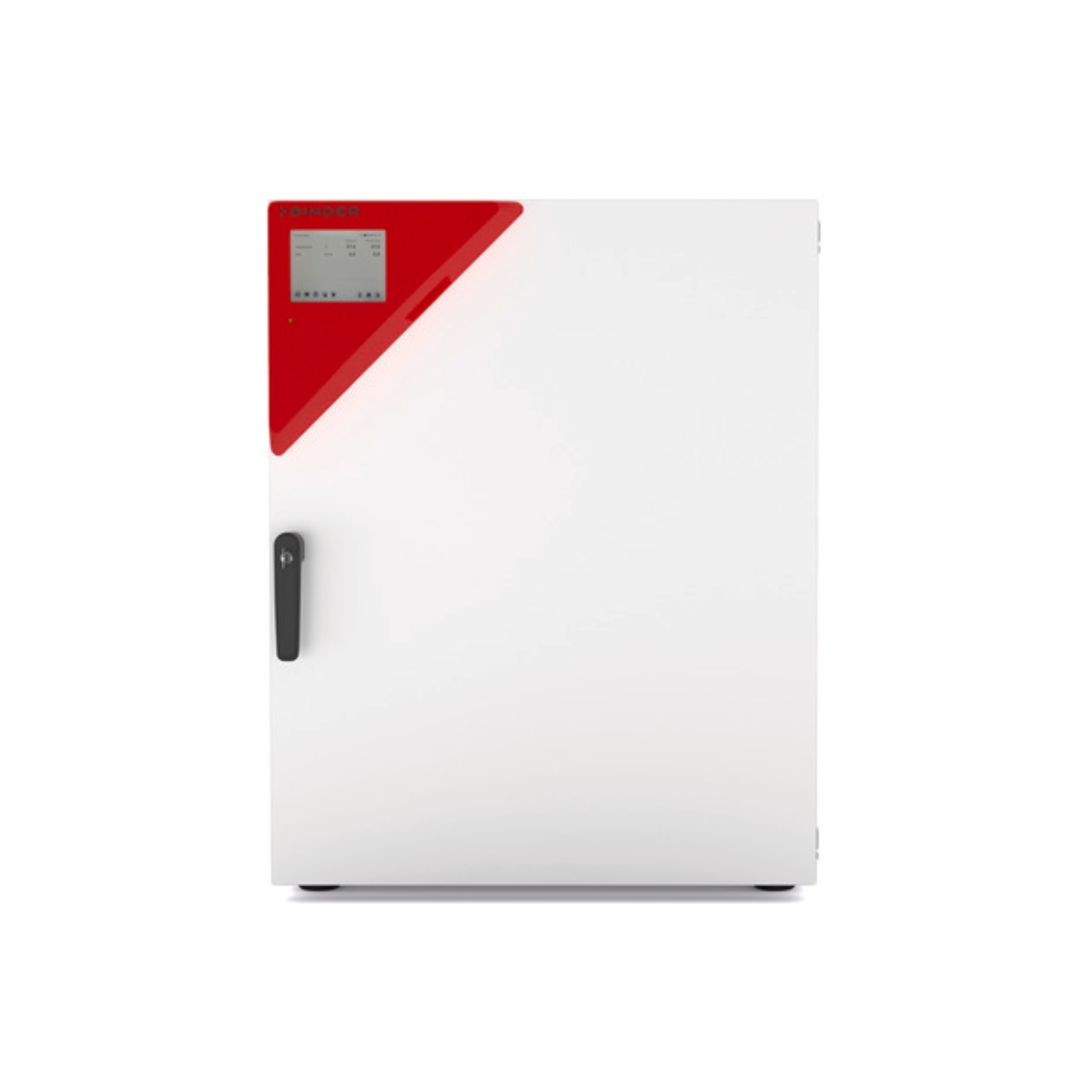

BINDER CO2 Incubator C170
