Biobase – Disinfection and Sterilization
- Portable type: The Cheapest
- Class B: Bestselling type, in stock
- Vertical type: Most cost-effective style
- UV Air sterilizer: Sterilize the environment
Available Models

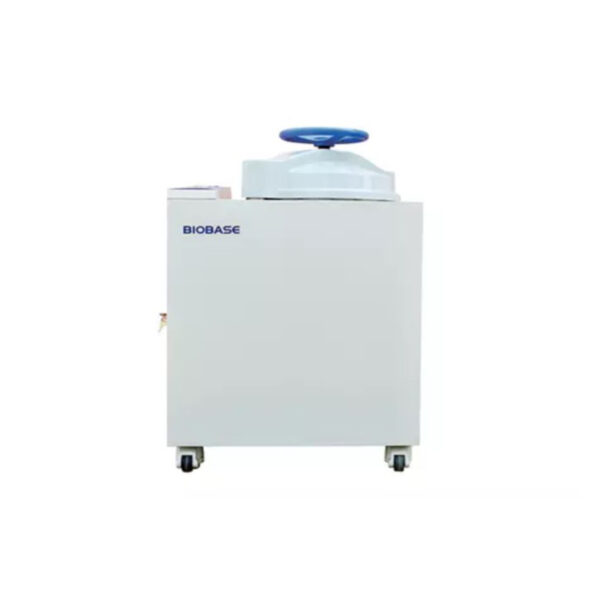

Vertical Autoclave BKQ-BI
Application range:
There are 4 fixed programs and 1 DIY programs according to different sterilization objects such as wrapped or unwrapped instrument, rubber, dressing, etc.
Safety Features:
- Over-temperature automatic protection device.
- Over-pressure protection measures.
- Door safety detection device.
- Over-current and leakage safety protection.
- Water shortage protection device.
Technical Features:
- LED screen displays.
- Independent quick service window, easy for repairing and maintenance.
- Audio and visual alarm: anti-dry burning, over-pressure protection, over-temperature protection, power safety protection.
- Sterilization programs for wrapped pr unwrapped instrument, rubber, dressing, etc.
- Hand wheel translation type door opening, fast and labor-saving.
- Using single-chip microcomputer control, heating, sterilization, exhaust, fully automatic control, without too much manual operation.
- Adopt gravity displacement and positive pressure pulsation exhaust mode to discharge the load and cold air in the sterilization room.
Technical Specifications
| Model | BKQ-B50I | BKQ-B75I | BKQ-B100I | BKQ-B120I |
| Capacity | 50L | 75L | 100L | 120L |
| Chamber Size(mm) | φ386*515 | φ386*695 | φ386*875 | φ386*1055 |
| Chamber Material | SUS304 | SUS304 | SUS304 | SUS304 |
| Designed Pressure | 0.28Mpa | 0.28Mpa | 0.28Mpa | 0.28Mpa |
| Designed Temp | 150℃ | 150℃ | 150℃ | 150℃ |
| Working Pressure | 0.22MPa | 0.22MPa | 0.22MPa | 0.22MPa |
| Working Temp | 105~136℃ | 105~136℃ | 105~136℃ | 105~136℃ |
| Consumption | 4.4KW | 4.7KW | 5.2KW | 5.2KW |
| SS Basket | 1pc | 2pcs | 2pcs | 3pcs |
| Basket Size(mm) | Φ365*360 | Φ365*260 | Φ365*360 | Φ365*360/260 |
| External Size(W*D*H) mm | 640*550*980 | 640*550*1080 | 640*550*1280 | 640*550*1380 |
| Packing Size(W*D*H) mm | 750*745*1100 | 750*745*1240 | 750*745*1450 | 750*745*1540 |
| Gross Weight (Kg) | 97 | 107 | 120 | 135 |

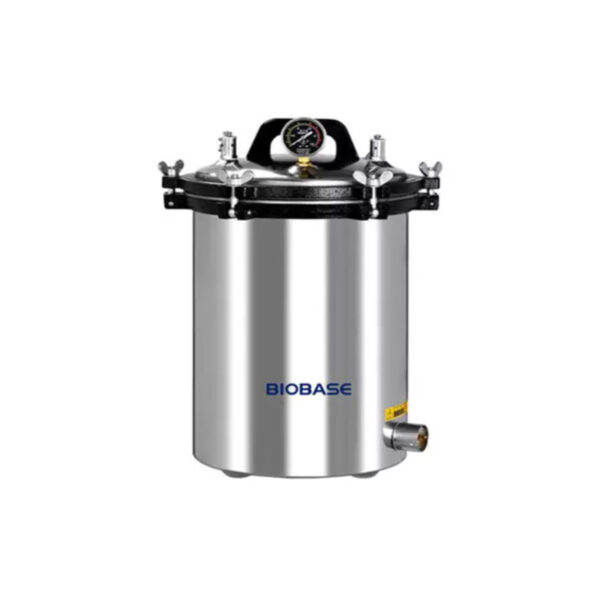

Portable Autoclave
This sterilizer uses pressure saturation steam as the gene to kill the bacterium. The article will be kept in airtight vessel and after heating, water will be transferred into saturation steam which will heat and damp the article quickly. After a certain period in constant temperature and pressure surrounding, the bacterium will be killed to satisfaction result.
Features:
- Easy operation, safe and reliable.
- The sealing ring is made of silicon rubber.
- Two safety valves keep double safety (for timing control type).
- It has self-adjustment function (for timing control type)
- It is well sealed and effectively prevents steam leakage.
- Over temperature & over pressure auto-protection.
- Electric or LPG heating (for Dual fuel Type).
- Immersion type electric heating pipe, thermal efficiency is high, stainless steel material tube is durable to use.
- Double groove pressure gauge, could clearly indicate, convenient observation, reliable performance.
- When at lower water level, or at the end of heat preservation time, have buzzer alarm, timing control type will automatically stop heating (for timing control type).
Technical Specifications
| Model | BKM-P18(D) | BKM-P24(D) | BKM-P18(A) | BKM-P24(A) | BKM-P18(B) | BKM-P24(B) |
| Type | Timing control type | Timing control type | Anti-dry out type | Anti-dry out type | Dual fuel Type | Dual fuel Type |
| Capacity | 18L | 24L | 18L | 24L | 18L | 24L |
| Chamber Size(mm) | φ280*210 | φ280*310 | φ280*210 | φ280*310 | φ280*260 | φ280*390 |
| Temperature Setting | RT+5~126℃ | RT+5~126℃ | 126℃(default)or 121℃ | 126℃(default)or 121℃ | 126℃ | 126℃ |
| Consumption | 2KW | 2KW | 2KW | 2KW | 2KW | 2KW |
| Power Supply | AC220V,50/60HZ | AC220V,50/60HZ | AC220V,50/60HZ | AC220V,50/60HZ | AC110/220V±10%, 50/60Hz | AC110/220V±10%, 50/60Hz |
| Working Pressure | Along with temperature change | Along with temperature change | 0.142Mpa | 0.142Mpa | 0.14-0.16Mpa | 0.14-0.16Mpa |
| Packing Size(W*D*H) mm | 420*420*650 | 420*420*740 | 420*420*650 | 420*420*740 | 410*410*430 | 410*410*550 |
| Gross Weight(kg) | 1.20E+01 | 1.40E+01 | 12 | 14 | 16 | 17 |
Key Industries
- Biopharmaceutical and Biotechnology
- Cosmetics & Personal Care
- Food & Beverage
- Medical
- Machinery & Manufacturing
Brand
Biobase Scientific (Shandong) Co., Ltd is a China-based high tech medical devices and scientific instruments company. Our products have obtained CE, EN, NSF, FDA and other certifications.
