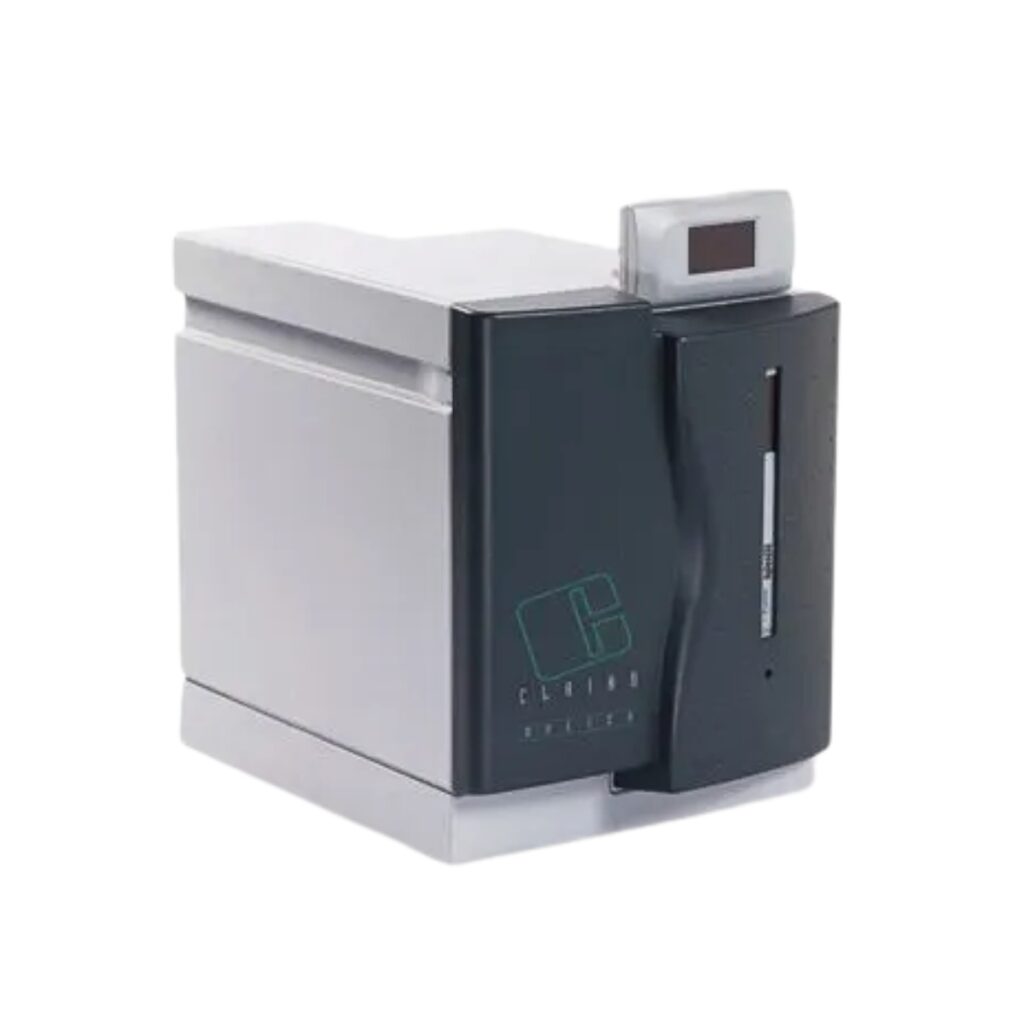

Claind – Hydrogen Generator – HyGen
- Designed for Carrier Gas in GC, GC-MSD and “FAST GC”
- UHP Purity that meets the needs required by the track analysis
- Security system with audible alarms, display messages and automatic production stop in case of gas leaks
- Available the automatic Switch with inert gas when Hydrogen alarm
- Parallel connection from series up to 4 stacked generators
Technical Specifications
| Flow Rate | 200/400/600 Nml/min ± 10% a 2000 m slm (possibility to connect in parallel up to 4 stacked generators) |
| Technologies Employ | HT PEM electrolytic cell |
|---|---|
| Output Pressure | 2 – 8 bar ± 3% /30 – 116 psi ± 3% |
| Purity | 99,9999 % Oxygen < 1 ppm |
| Moisture | Better than -70℃ dew-point ATP at 20℃ |
| Requirements of Demineralized Water | Required resistivity >1 MΩ cm @25°C; ASTM Type II Advised resistivity >10 MΩ cm @25°C; ASTM Type I |
| Electrical Supply | 115/230 VAC (+/- 10%) 50-60 Hz HyGen 200: 110W HyGen 400: 180W HyGen 600: 250W |
| Index Of Protection | IP20 |
| Noise | < 50 dBA |
| Operating Temperature | 5℃ – 35℃ / 40°F – 95°F |
| Environmental Humidity | max 90% without condensation |
| Max Altitude | 2000 m slm |
| Dimensions | Height: 40 cm + 7 cm (base) /15.8” + 2.8” Width: 38 cm/14.9” Width: 38 cm/14.9” |
| Weight | 30 kg/67 lbs |
| Pneumatic Connections | Hydrogen output : G 1/8” female AISI 316 Exhaust: quick coupling for plastic pipe 4 mm Input demineralized water: flexible hose with 1⁄4” connection |
| Warranty | 2 years |
Key Features
- Modular configuration
- Equipped with the innovative HT PEM cell for high purity
- Removable water tank for easy cleaning and water change; automatic water loading pump included for external water supply
- Maintenance: simple substitution of the deionizing bag and drier, only after 50.000l of H2 produced
- CPU with Touch Screen Display connectable with CAN BUS to the generators (up to 32 units), allows the operational status monitor, showing menus with report alarms and functioning parameters
- Hydrogen production proportional to consumption, with the minimum gas storage within the instrument
- CPU equipped with LAN connection
