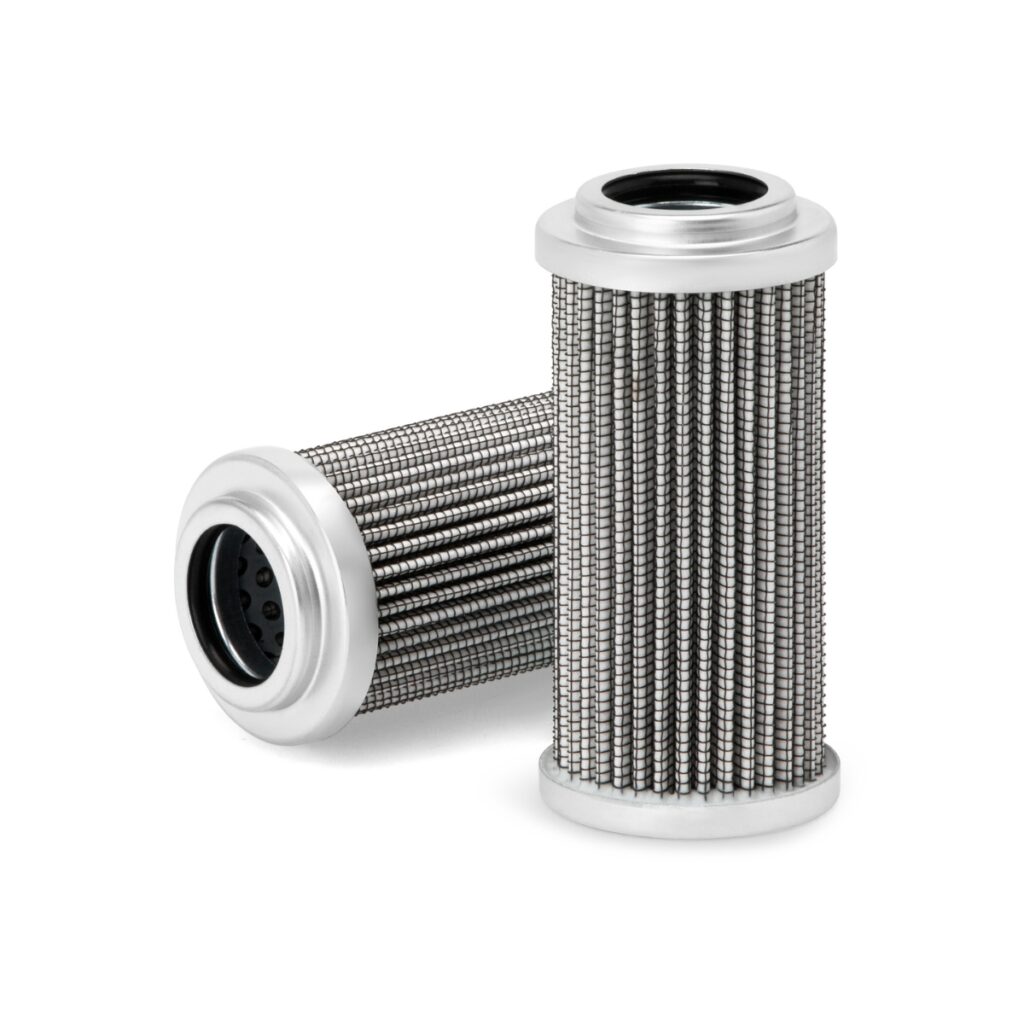

Cummins – Industrial – Hydraulic Filtration Systems

Through the right choice of filter media, our Cummins Filtration brand hydraulic filtration products achieve higher efficiency and dust capacity with lower pressure-drop characteristics than the competition. This prolongs component life, which saves you money in the long run.

The proper oil-cleanliness level for critical clearances on components in the hydraulic fluid stream is the key. Our state-of-the-art facilities enable us to perform multi-pass, pressure-drop, flow-fatigue and hydrostatic burst testing.

For your convenience, filter elements are available in a variety of media and micron rating efficiencies. Filters can be selected for petroleum- and water-base fluid compatibility. Filter heads are also available in multiple inlet/outlet port sizes and by-pass valve settings.

System performance, design flexibility and product quality are reflected in Fleetguard’s diverse hydraulic filtration product line.

Key Features

Our hydraulic filters offer a wide range of capabilities, depending on the model:

• Rated flows ranging from 37 gpm (140 L/min) for the HF6500 Series to 55 gpm (208 L/min) for the HF6800 Series.
• Maximum static pressures ranging from 350 psi (2413 kPa) for the HF6500 Series to 700 psi (4826 kPa) for the HF6800 Series.
• Recommended working pressures starting at 250 psi (1724 kPa) for the HF6500 Series to 400 psi (2758 kPa) for the HF6800 Series.
