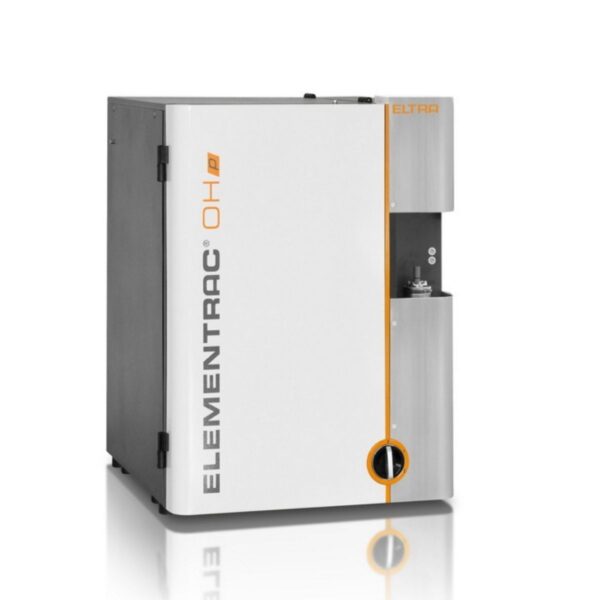

NEW! Eltra – Oxygen/Hydrogen Analyzer – Elementrac OH-p 2
Product Advantages
- Hydrogen determination with heat extraction technique for determination of residual hydrogen
- High-capacity thermal conductivity cell
- Easy calibration with standards or gas dosing
The new ELEMENTRAC OH-p 2 is a powerful and robust elemental analyzer for measurement of oxygen and hydrogen concentrations in inorganic samples like steel, iron, copper or ceramics. The highly sensitive NDIR and thermal conductivity detectors reliably detect element concentrations from low ppm content to high percentages.
The ELEMENTRAC OH-p 2 elemental analyzer meets or exceeds the requirements of all relevant international standards such as ASTM E 1019 or DIN EN 3976.
Typical sample materials : alloys, aluminum, ashes, carbides, cast iron, copper, ferroalloys, iron, metals, ores, refractory metals, silicon, steel
Technical Specifications
| Measured Elements | hydrogen, oxygen | |
| Samples | inorganic | |
|---|---|---|
| Furnace Alignment | vertical | |
| Sample Carrier | graphite crucibles | |
| Field of Application | ceramics, engineering / electronics, steel / metallurgy | |
| Furnace | electrode impulse furnace (max. 8,5 KW*), temperatures in excess of 3,000 °C | |
| Detection Method | solid state infrared absorption for oxygen, thermal conductivity for hydrogen | |
| Typical Analysis Time | 120 – 180 s | |
| Chemicals Required | Schuetze reagents, magnesium perchlorate, sodium hydroxide | |
| Gas Required | compressed air, nitrogen 99.995 % pure, all gases with (2 – 4 bar / 30 – 60 psi) | |
| Power Requirements | 3~ 400 V, 50/60 Hz, max. 8,500 W | |
| Dimensions (W x H x D) | 56 x 78 x 64 cm | |
| Weight | ~ 165 kg | |
| Required Equipment | PC, monitor, balance (resolution 0.0001g) | |
| Optional Accessories | carrier gas purification, external chiller, gas calibration unit | |
| *Limited to 6.8 kw in application settings | ||
Key Features
Elementrac OH-p 2
- Low gas consumption and high sensitivity due to closed gas system
- Easy application of pins, powders and granules
- Inexpensive argon as carrier gas possible
- Short analysis time
- Powerful impulse furnace with 8.5 kW
- Optional Autocleaner
- Reliable OH elemental analysis of inorganic materials like steel, non-ferrous metals, ceramics, slags, ores, etc
Operation and Analysis Process
Step 1: Logging the sample into the ELEMENTS software
The sample ID is logged into the software and the weight is automatically transferred (see step 2).
Step 2: Weighing and introduction of sample into the port
The ELEMENTRAC OH-p 2 analyzes volumes from a few mg up to 2 grams safely and precisely. Rod-shaped or granular samples can be applied directly. For the elemental analysis of powders, a capsule is recommended which does not have to be sealed.
Step 3: Analysis
The empty graphite crucible is then placed on the lower electrode and the elemental analysis is started via the ELEMENTS software. The software controls all subsequent process steps.
Step 4: Data output and export
120 to 180 seconds after the analysis has started, the measured concentrations are available for export as a report or via LIMS.
