Foss – MilkoScan
The MilkoScan™ FT3
Offers a new and intelligent approach to analysis of dairy and plant-based drinks including the power to test a wide variety of liquid and semi-solid products with exceptional uptime and unprecedented consistency of results.

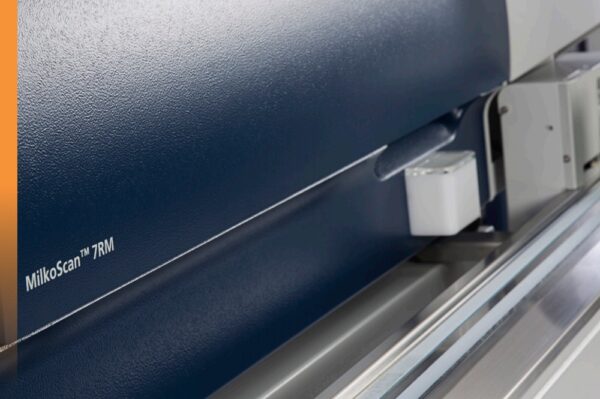

The MilkoScan™ 7 RM
A high capacity, fully automatic solution for milk composition analysis for payment and dairy herd improvement. Fast, reliable and accurate raw milk composition analysis of 17 parameters in 6 seconds. MilkoScan™ 7 RM is available as a part of CombiFoss™ 7.
Technical Specifications
| The MilkoScan™ FT3 | |
| Freezing Point (FP) | Milk freezing point, cream freezing point (by applying conductivity sensor) |
| Calibration range | According to application note |
| Accuracy (milk) | <1.0% CV (F, P, L, TS) (guaranteed) <0.8% CV (F, P, L, TS) (typical) <4.0 m°C (FP) |
| Repeatability (milk) | <0.25% CV (F, P, L) <0.20% CV (TS) <1 m°C (FP) |
| Transferability (milk) | <0.5% CV (F, P, L, TS) |
| Carryover (milk and cream) | <0.5% |
| Adjustment routine | Automated slope/intercept procedure |
| Sample volume milk and cream | <8.0 mL |
| Measurement time (milk) | 30 seconds |
| Sample temperature | 5 – 55°C (the sample must be homogeneous) |
| Ambient temperature | 10 – 35 °C |
| Automatic humidity control | Protected automatic drying system |
| Intelligent diagnostics | Built-in ID chips for wear-time logging, service history and troubleshooting |
| Network connections | LIMS, FossManager™ |
| Demineralised water quality | ISO Grade 3 / ASTM Type IV or better |
| Weight / W x D x H | 43 kg / 750 x 450 x 408 mm |
| The MilkoScan™ 7 RM | ||
| Analysis capacity | 100, 200, 300, 400, 500 or 600 samples per hour | |
| Sample intake | 5 ml | |
| Required sample temperature | 37 – 42°C | |
| Performance specifications | Full spectrum calibrations | |
| *Using conductivity sensor for optimal performance MilkoScan™ FT3 is in compliance with AOAC (Association of Analytical Chemists) and IDF (International Dairy Federation). | ||
Available Models
Value
Intelligent instrument for rapid platform control and segregation, fair payment and screening for abnormalities. Product standardisation for optimal use of raw material and consistent quality products. Monitoring the quality of final products.
Sample type
Compositional analysis of liquid and semi-solid dairy products such as milk, cream, whey, yoghurt, creme fraiche, protein concentrates including WPC, chocolate milk as well as plant-based drinks such as soy, almond, oat, rice, coconut and pea milk and more.
Parameters
Global calibrations: Fat, protein, lactose (incl. low lactose products), total solids, solids non fat, freezing point, titratable acidity, density, free fatty acids, citric acids, casein, urea, sucrose, glucose, fructose and galactose. Targeted and untargeted adulteration screening
Standards and Approvals
MilkoScan™ 7 RM is CE-labelled and complies with the following directives and regulations:
- EMC (ElectroMagnetic Compatibility) Directive 2014/30/EU
- LVD (Low Voltage) Directive 2014/35/EU
- Machinery Safety Directive 2006/42/EC
- Regulation (EC) 1272/2008 on classification, labelling and packaging of substances and mixture, CLP (EC)
- WEEE Directive 2002/96/EC
- Packaging and packaging waste Directive 94/62/EC
- REACH 1907/2006/EC
The MilkoScan™ 7 RM techniques comply with:
- ISO 9622 / IDF 141:2013
- AOAC official method 972.16
By using wavelengths from the entire Mid- IR spectrum for each component, calibrations are optimized in terms of robustness and/or accuracy (temperature, homogenization and humidity).
Value
High throughput with high uptime, the MilkoScan™ 7 is the ultimate tool for cost effective laboratory operations with flexible licensing options for a no-limits test portfolio.
Sample type
Raw milk (cow, goat, sheep, buffalo).
Parameters
Fat, protein (true and crude), casein, lactose, solids (SnF and TS), urea, citric acid, fatty acid profiling, Free Fatty Acids (FFA), freezing point depression, pH, ketosis screening (BHB and acetone), untargeted raw milk screening (adulteration).
Deliver Peak Performance in Milk and Dairy Analysis
MilkoScan™ 7RM – The Future of Milk Testing and Herd Improvement
