Lauda – Ultracool Process Circulation Chiller
Process Circulation Chillers for Industrial Applications

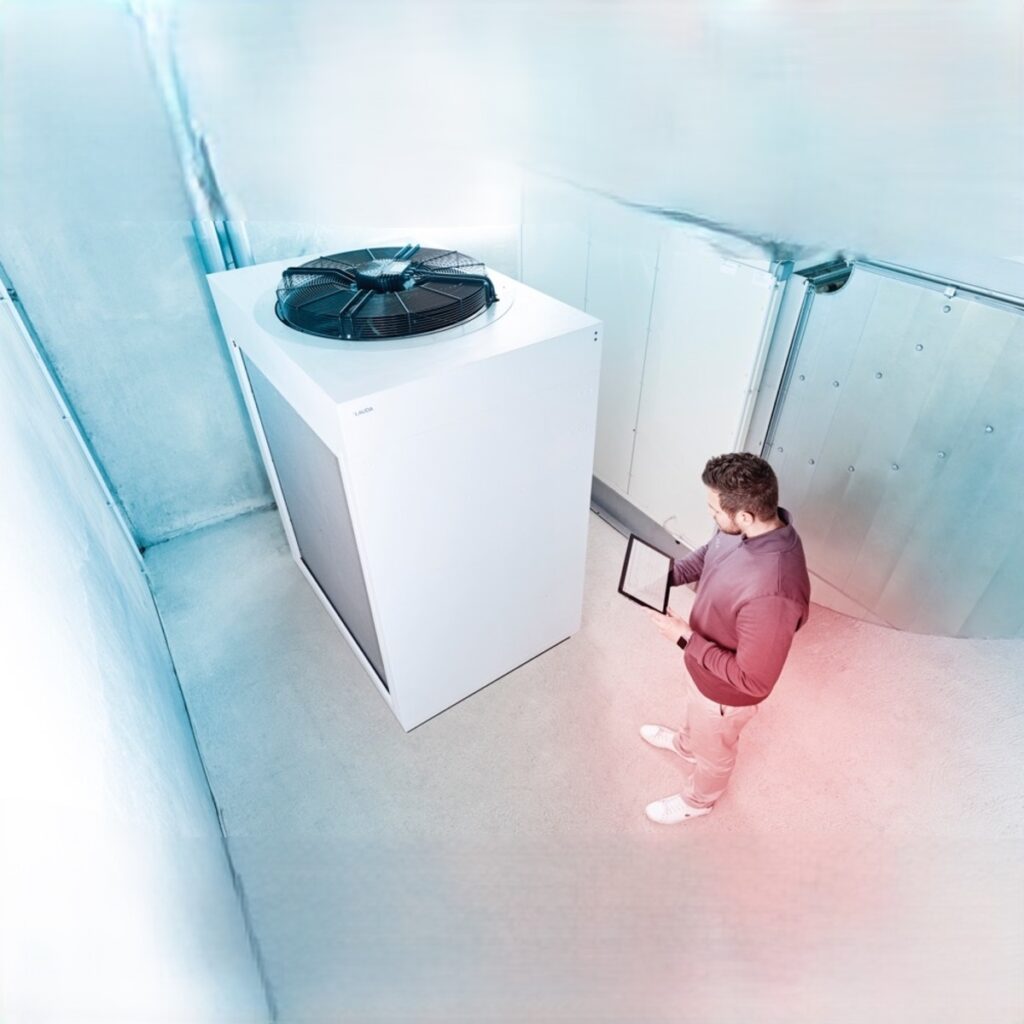

LAUDA Ultracool chillers provide reliable temperature control and ensure secure processing. The models are plug & operate systems equipped with a cold water tank, a centrifugal pump and an internal bypass. All chillers are already equiped with an antifreeze protection thermostat to prevent freezing of the heat exchanger. Integrated pressure switches protect the circuit against pressure levels that drift too high or too low. Housings made from galvanized steel and externally coated with epoxy resin protects against corrosion even under aggressive ambient conditions. All models are suitable for outdoor installation.
Technical Specifications
| Working temperature | -5…25°C |
| Volume of water reservoir | 19…200 L |
|---|---|
| Temperature stability | up to 265 kW |
| Cooling output | 0.25…1.2 kW |
| Pump pressure max. | 3.40…4.70 bar |
| Pump flow max. | 42…230 L/min |
Available Models
Technical Specifications
| Working temperature range | -5…25°C |
| Temperature stability | 2 ±K |
| Volume of water reservoir | 19 L |
| Cooling output at 20°C | up to 4.9 kW |
| Pump pressure max. | 3.40 bar |
| Pump flow max. | 42 L/min |
The three UC Mini chillers are available with cooling outputs from 2.1 up to 4.9 kW. The models work with a hermetic compressor and a centrifugal pump. The pump is noise reduced and works with a very flat flow rate/pressure characteristic. This allows the user to easily adjust the water flow without jeopardizing the pressure.
Compared to the previous models the device dimensions were significantly reduced. Due to the optimized geometry of the devices an easy access to the components that need to be serviced regularly is provided. The temperature range in which the coolers can be used now covers an extended temperature from 0 up to 50°C ambient. Additionally outdoor installation of these circulation chillers is available as an option and allows the use at ambient temperatures down to -15°C.

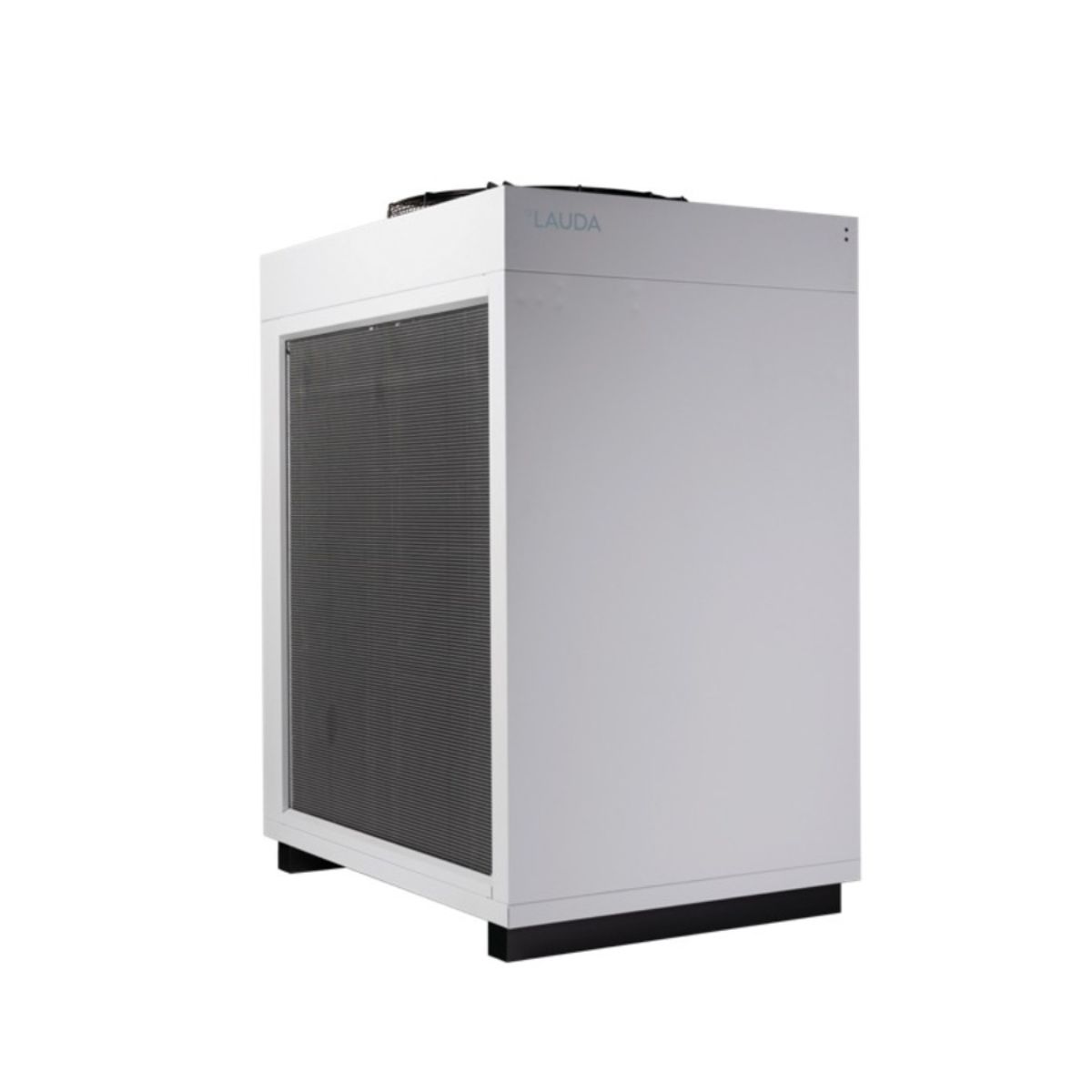

Technical Specifications
| Working temperature range | -5…25°C |
| Temperature stability | 2 ±K |
| Volume of water reservoir | 100 L |
| Cooling output at 20°C | up to 26.3 kW |
| Pump pressure max. | 4.20 bar |
| Pump flow max. | 130 L/min |
The three UC Mini chillers are available with cooling outputs from 2.1 up to 4.9 kW. The models work with a hermetic compressor and a centrifugal pump. The pump is noise reduced and works with a very flat flow rate/pressure characteristic. This allows the user to easily adjust the water flow without jeopardizing the pressure.
Compared to the previous models the device dimensions were significantly reduced. Due to the optimized geometry of the devices an easy access to the components that need to be serviced regularly is provided. The temperature range in which the coolers can be used now covers an extended temperature from 0 up to 50°C ambient. Additionally outdoor installation of these circulation chillers is available as an option and allows the use at ambient temperatures down to -15°C.

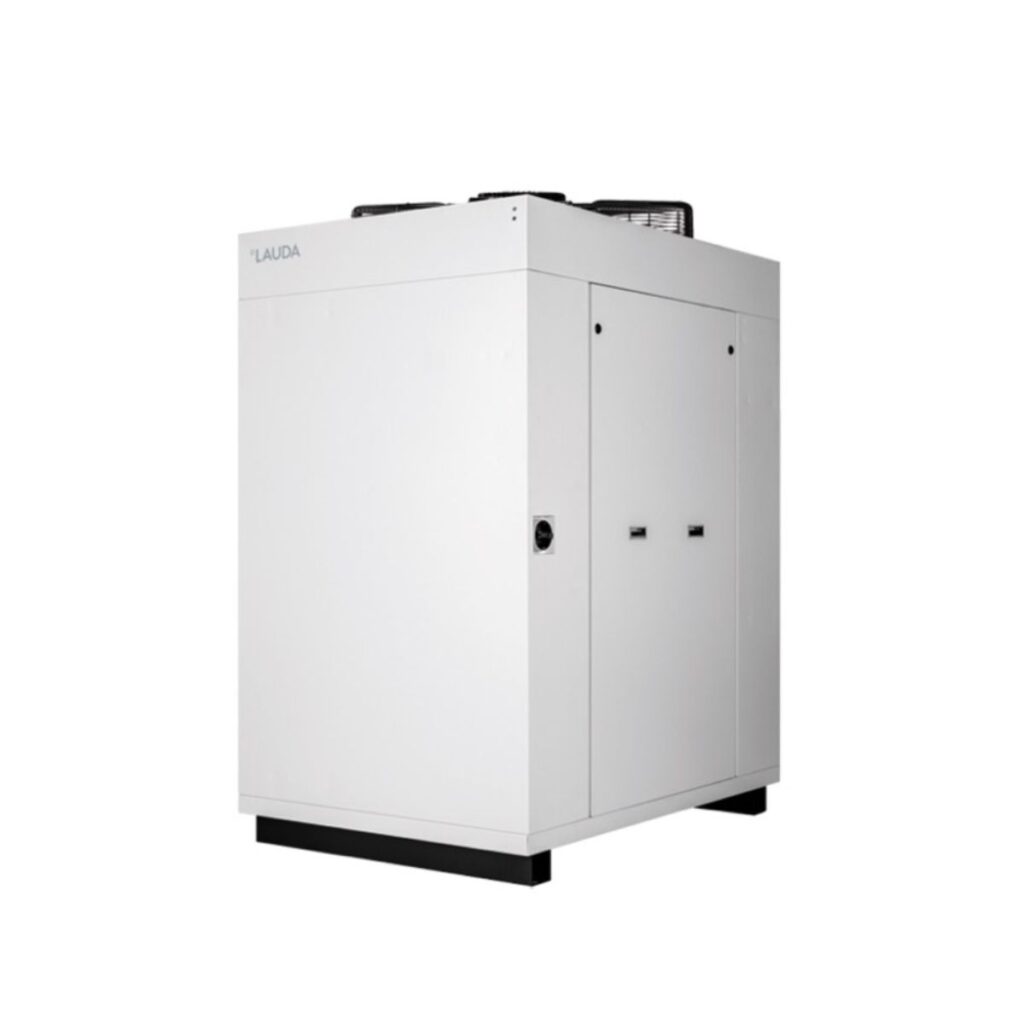

Technical Specifications
| Working temperature range | -5…25°C |
| Temperature stability | 2 ±K |
| Volume of water reservoir | 200 L |
| Cooling output at 20°C | up to 265 kW |
| Pump pressure max. | 4.20 bar |
| Pump flow max. | 230 L/min |
The three UC Mini chillers are available with cooling outputs from 2.1 up to 4.9 kW. The models work with a hermetic compressor and a centrifugal pump. The pump is noise reduced and works with a very flat flow rate/pressure characteristic. This allows the user to easily adjust the water flow without jeopardizing the pressure.
Compared to the previous models the device dimensions were significantly reduced. Due to the optimized geometry of the devices an easy access to the components that need to be serviced regularly is provided. The temperature range in which the coolers can be used now covers an extended temperature from 0 up to 50°C ambient. Additionally outdoor installation of these circulation chillers is available as an option and allows the use at ambient temperatures down to -15°C.
Key Features
Ultracool Process Circulation Chiller
- Use of plate heat exchangers outside of water tank improves heat exchange efficiency and minimizes energy lost
- Centrifugal high-quality water pump with internal bypass allows flow rates from 0 to 100 percent
- Integrated water filter and antibacterial additive provides protection of application and chiller system
- Housing made from galvanized steel and externally coated with epoxy resin gives protection against corrosion even under aggressive ambient conditions
- Protection class IP54 suitable for outdoor installation
- Suitable for temperatures up to 50°C allows operation under extreme ambient temperature conditions
- Compact and smart design results in user friendly installation and maintenance and reduction of footprint to save installation space
- Large cold water tank keeps water temperature constant even under varying load conditions
Key Industries
- Aerospace
- Agriculture
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Construction
- Cosmetics & Personal Care
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Energy
- Environmental
- Food & Beverage
- Luxury
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Optical
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
- Railway
- Semiconductor, Solar & Electronics
- Service
- Textile
- Wholesale & Retail
Brand
We are LAUDA – The world leader in precise temperature control. Our Constant temperature equipment and Heating and cooling systems are at the heart of many applications. As a full-service provider we guarantee the optimum temperature in research, production and quality control. We are the trusted partner, particularly in the fields of automotive, chemical/ pharmaceutical, semiconductor and laboratory/ medical industries. For over 60 years we have been inspiring our customers with our competent consulting and innovative, environmentally-friendly concepts, anew every day – globally.
