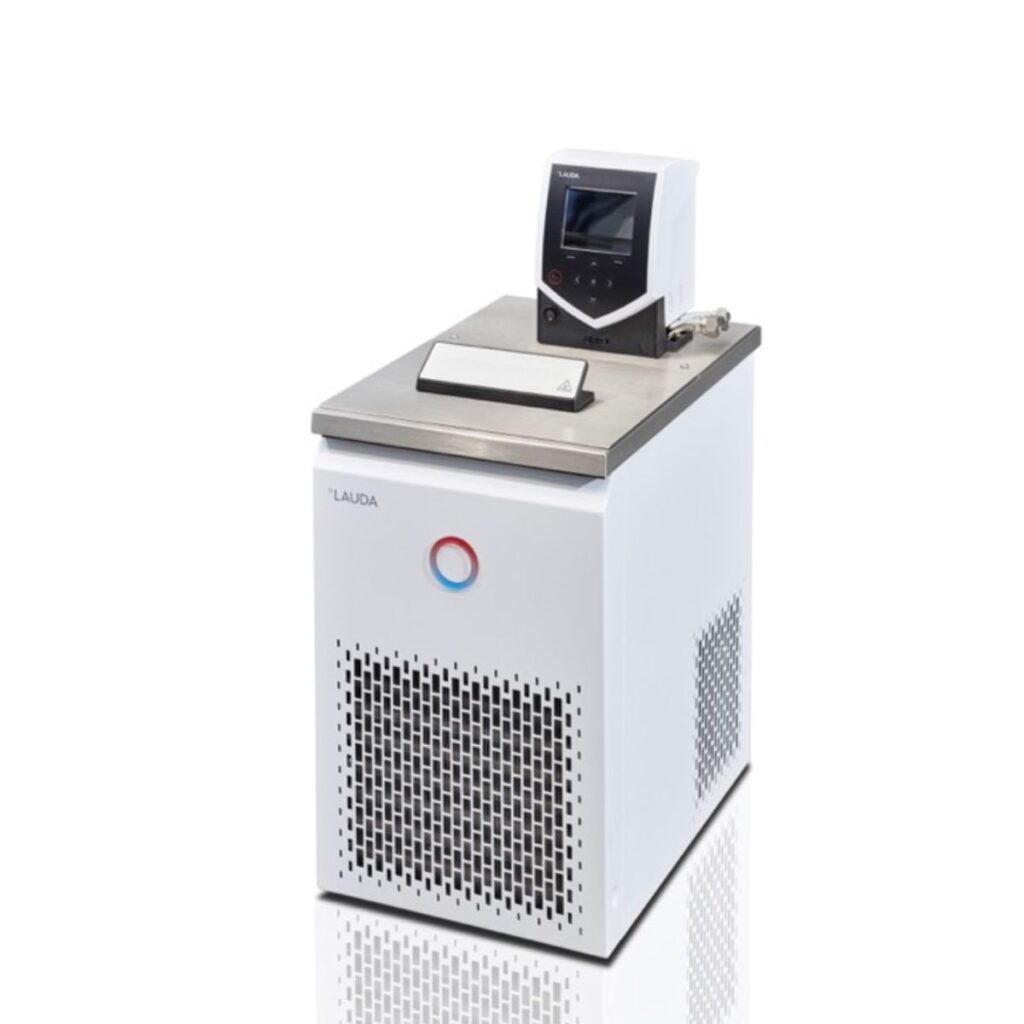

Lauda – Water-Cooled Cooling Thermostats
Calibration and adjustment of temperatures from -25 to 200 °C with LAUDA calibration thermostats
LAUDA calibration thermostats provide constant temperature and homogeneity in calibration and adjustment in the test chamber. The ideal solution in comparison to heat cabinets and metal block thermostats, since liquid thermostats transfer heat in the temperature control liquid 40 to 60 times better than via air.
Technical Specifications
| ECO REJ 1225 G | |
| Working temperature min. | -25 °C |
| Working temperature max. | 200 °C |
| Interface(s) | Mini-USB |
| Temperature stability | 0.02 ±K |
| Bath volume max. | 12 L |
| Bath depth | 200 mm |
| Heater power | 2.6 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. (pressure) | 22 L/min |
Available Models
Technical Specifications
| Working temperature range | -15…200°C |
| Temperature stability | 0.02 ±K |
| Heater Power | 2.0 kW |
| Cooling output at 20°C | 0.18 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 3.3…4 L |
| Bath Opening /Depth | 130 × 105 / 160 mm |
Technical Specifications
| Working temperature range | -15…200°C |
| Temperature stability | 0.02 ±K |
| Heater Power | 2.6 kW |
| Cooling output at 20°C | 0.18 kW |
| Pump pressure max. | 0.55 bar |
| Pump flow max. | 22 L/min |
| Bath volume | 3.3…4 L |
| Bath Opening /Depth | 130 × 105 / 160 mm |
Key Features
- Easy and intuitive operation with clearly readable parameters on LCD / TFT display
- Programer allows automation of temperature variations and test series
- Strong circulation pump with six levels allow adaptation of pump power to applications and different bath sizes
- Provides user with flexible control options with a range of different module options (ANalog, RS232/485, contact, Profibus, Ethernet, EtherCAT, Pt100/LiBus)
- Command remote control is possible via LiBus module.
- Possible computer connection via mini-USB enables easy software updates
- Drain valves as standard for easy and safe changing of heat transfer liquids
- SmartCool System and digital cooling management provides energy and cost saving
Key Industries
- Aerospace
- Agriculture
- Automotive
- Biopharmaceutical and Biotechnology
- Chemical
- Construction
- Cosmetics & Personal Care
- Defense
- Die & Mould
- Education & Academics
- Electronics
- Energy
- Environmental
- Food & Beverage
- Luxury
- Machinery & Manufacturing
- Medical
- Mining & Minerals
- Oil & Gas
- Optical
- Paper & Wood
- Pharmaceutical
- Polymers, Plastics and Rubbers
- Powders & Pigments / Coating
- Railway
- Semiconductor, Solar & Electronics
- Service
- Textile
- Wholesale & Retail
Brand
We are LAUDA – The world leader in precise temperature control. Our Constant temperature equipment and Heating and cooling systems are at the heart of many applications. As a full-service provider we guarantee the optimum temperature in research, production and quality control. We are the trusted partner, particularly in the fields of automotive, chemical/ pharmaceutical, semiconductor and laboratory/ medical industries. For over 60 years we have been inspiring our customers with our competent consulting and innovative, environmentally-friendly concepts, anew every day – globally.
