Spectroquant® Move 100 is made for rapid, reliable on-site water analysis. No delays, no risk of sample deterioration and no need for additional instruments. The compact, portable colorimeter covers every important parameter of drinking water and wastewater analysis in one instrument.
- Pre-programmed for over 100 parameters
- Wide choice of measuring ranges for accurate results
- Dust tight and waterproof according to IP 68 classification
- Secure results with simplified AQA and enhanced documentation
Technical Specifications
| Prove 300 | Prove 600 | ||
|---|---|---|---|
| Scope of delivery | Instrument in light carrying case, 4 batteries, 3 round vials each 24- and 16-mm ø, 1 adapter for 16-mm vials, screwdriver, guarantee certificate, certificate of compliance, instruction manual | ● | ● |
| Display | Backlit graphic-display | ● | |
| Backlit LCD (on keypress) | ● | ||
| Interfaces | IR interface for data transfer | ● | ● |
| RJ45 connector for internet updates | ● | ||
| Optics | LED, interference filter, photosensor, transparent measurement chamber | ● | ● |
| Wavelength | 430, 530, 560, 580, 610 and 660 nm | ● | |
| 530 nm | ● | ||
| Wavelength accuracy | ±1 nm | ● | ● |
| Photometric accuracy | 1.000 Abs ±0.020 Abs 2.600 Abs ±0.052 Abs ( 2 % FS) (measured with standard solutions – T = 20 – 25°C) | ● | |
| 1.000 ± 0.030 Abs 2.600 Abs ± 0.078 Abs ( 3 % FS) 3 % FS (measured with standard solutions – T = 20 – 25°C) | ● | ||
| Photometric resolution | 0.005 A | ● | |
| 0.001 A | ● | ||
| Operation | Acid and solvent resistant tactile film keyboard | ● | ● |
| Power supply | 4 batteries (Type AA/LR6), capacity approx. 26 hours continuous use or 3,500 tests | ● | |
| 4 batteries (Type AAA/LR03), capacity approx. 17 hours continuous use or 5,000 tests | ● | ||
| Weight | approx. 450 g | ● | |
| approx. 260 g | ● | ||
| Dimensions | approx. 210 x 95 x 45 mm (instrument) approx. 395 x 295 x 106 mm (case) | ● | |
| approx. 155 x 75 x 35 mm (instrument) approx. 340 x 275 x 83 mm (case) | ● | ||
| IP classification | Dust and waterproof acc. to IP 68 | ● | ● |
| Storage capacity | approx. 1,000 data sets | ● | |
| Internal ring memory for 16 data sets | ● | ||
| Comments | CE-Conformity | ● | ● |
Available Models

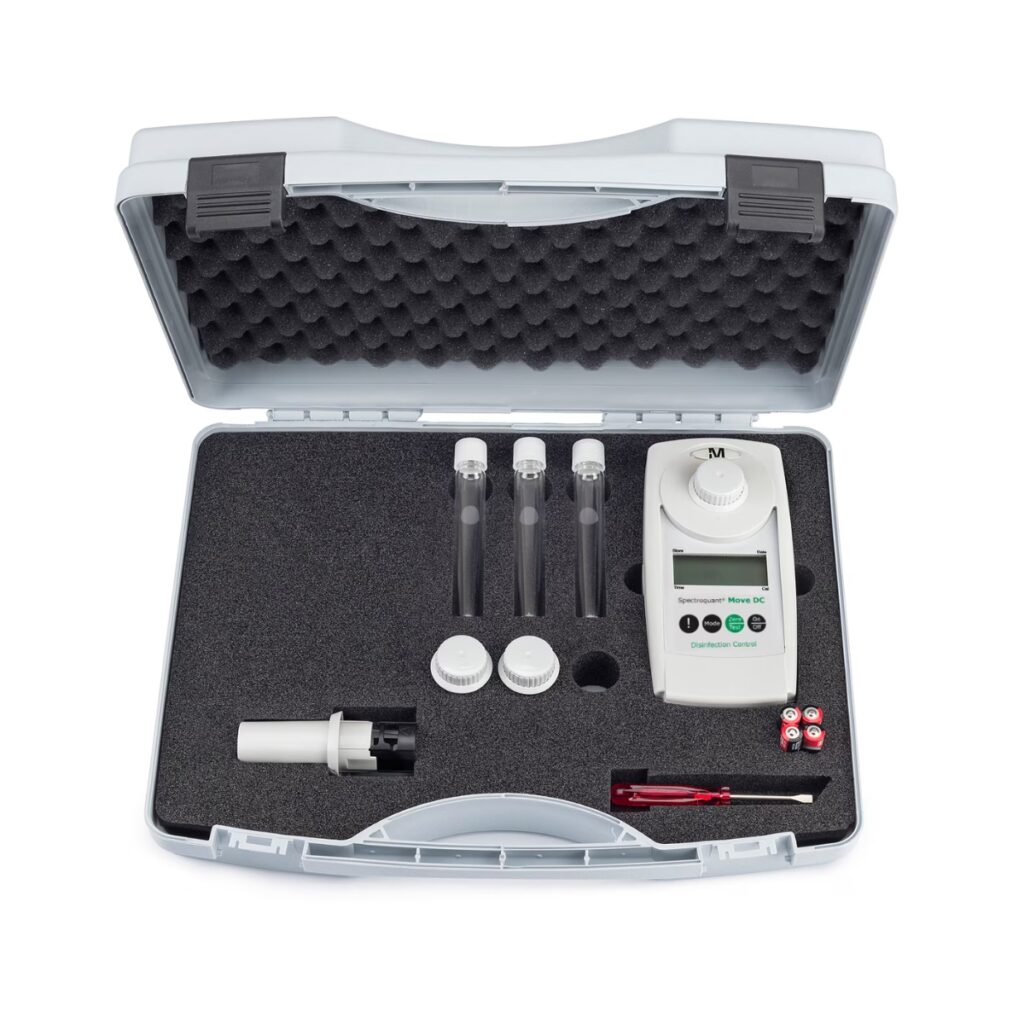

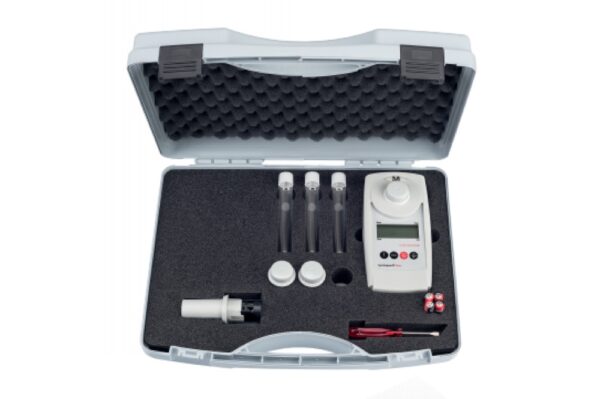

Spectroquant® Move Cl2/O3/ClO2/CyA/pH is built for easy disinfection control in field tests and process monitoring. The small device is automated for five essential parameters of disinfection control – chlorine, ozone, chlorine dioxide, cyanuric acid, and pH – based on Spectroquant® test kits.
- One instrument for all key parameters in disinfection control
- Dust tight and waterproof according to IP 68 classification
- Pre-programmed for high-quality Spectroquant® test kits
- Complete documentation for streamlined AQA and audits
Spectroquant® Move Cl2/O3/ClO2/CyA/pH is built for easy disinfection control in field tests and process monitoring. The small device is automated for five essential parameters of disinfection control – chlorine, ozone, chlorine dioxide, cyanuric acid, and pH – based on Spectroquant® test kits.
- One instrument for all key parameters in disinfection control
- Dust tight and waterproof according to IP 68 classification
- Pre-programmed for high-quality Spectroquant® test kits
- Complete documentation for streamlined AQA and audits
Convenient Photometry with Spectroquant Move® product family
Convenient Photometry with Spectroquant Move® Product Family
Key Industries
- Environmental
- Food & Beverage
