Merck – Spectroquant® Prove Spectrophotometers
The Spectroquant Prove family is our series of cutting-edge spectrophotometers for easy analysis of water, food and beverage, and environmental samples. All Spectroquant Prove instruments are pre-programmed for over 200 Test Kits and automatic bar code recognition ensures the correct method parameters are applied and all essential information such as lot number, expiry date, and automatic calibration updates are recorded, making the use of analytical Test Kits as easy as never before.
Technical Specifications
| Prove 100 | Prove 300 | Prove 600 | ||
|---|---|---|---|---|
| Measuring technology | Spectrophotometer with reference beam technology | ● | ● | ● |
| Wavelength range | Vis (320 – 1,100 nm) | ● | ● | ● |
| UV (190 – 320 nm) | ● | ● | ||
| Lamp type | Tungsten halogen lamp | ● | ||
| Xenon flash lamp | ● | ● | ||
| Ambient light protection | Measurement with open shaft possible due to proprietary solution (patent pending) | ● | ● | ● |
| Spectral bandwidth | 4 nm | ● | ● | |
| 1.8 nm | ● | |||
| Smart Screen display | Resistive touch screen | ● | ● | |
| P-cap glass touch screen | ● | |||
| Live ID system | 2-D Bar-code recognition for cell tests and reagent tests | ● | ● | ● |
| Bar-code contains lot, expiry, and calibration data. Data stored with each measurement | ● | ● | ● | |
| Cell size | 16-mm round cells, 10-, 20- and 50-mm rectangular cells with automatic recognition | ● | ||
| 100-mm rectangular cells with automatic recognition | ● | ● | ● | |
| Cell holder | Removable for easy cleaning | ● | ● | ● |
| Methods | Programmed methods of all Spectroquant® cell and reagent tests, 99 user defined methods, 20 profiles for kinetics and absorbance scans each | ● | ● | ● |
| Applications | Free preprogrammed applications: Bromate, Brewery packages (MEBAK/EBC/ASBC methods), Sugar (ICUMSA), Oil (DOBI, olive oil) | ● | ● | ● |
| AQA Prime | Individual settings for all methods in AQA 1 (instrument check) and AQA 2 mode (system check) and pipette check | ● | ● | ● |
| Sample matrix check | Easy access through setting menu to perform instrument supported matrix check for each method | ● | ● | ● |
| Software updates | Free method updates on our website | ● | ● | ● |
| Languages | Navigation in 28 built-in languages | ● | ● | ● |
| Communication interfaces | USB: 2 x USB-A (for printer, USB memory devices, keyboard or bar-code reader), 1 x USB-B; Ethernet: LAN connection | ● | ● | ● |
Available Models
For routine applications
Prove 100 is the best choice for those who primarily use our broad range of Spectroquant® test kits, or only performVis measurements. High quality and great value for money for yourdaily analyses.
Spectroquant® Prove 300: a robust UV/VIS spectrophotometer for sensitive measurements, such as the analysis of drinking water and beverages.

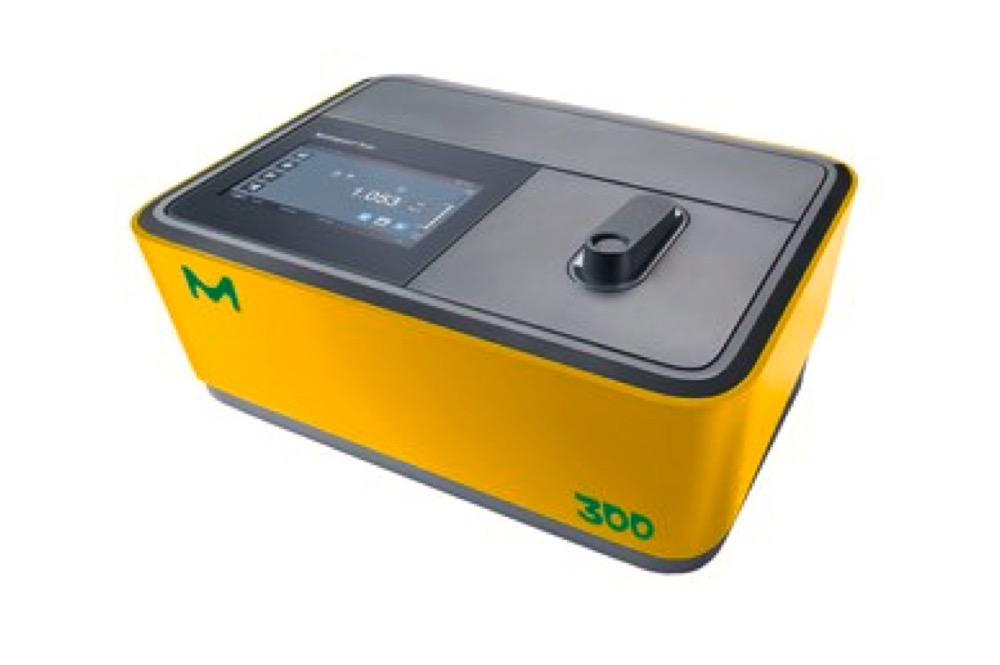

For sensitive measurements
Thanks to its long-lasting xenon lamp, Prove 300 is ideal for more intensive use. What’s more, it is capable of both UV and Vis measurements, so you have greater flexibility for moreintricate analyses.
Spectroquant® Prove 300: a robust UV/VIS spectrophotometer for sensitive measurements, such as the analysis of drinking water and beverages.

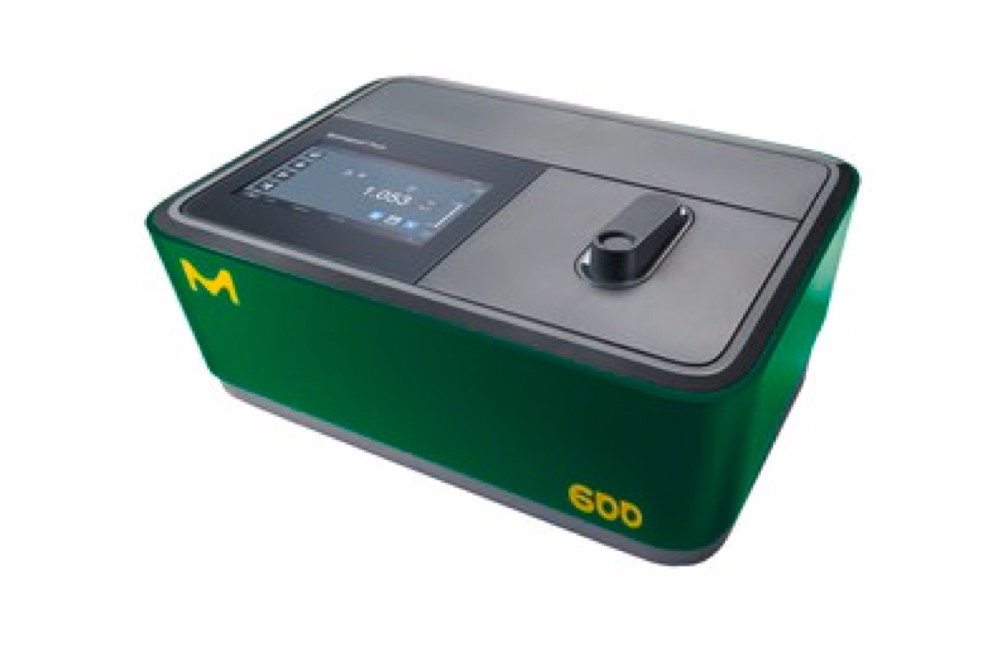

For complex analyses
Designed for high-end UV/Vis optics, and cells of up to 100-mm, Prove 600 packs great power into a compact size. Excellent resolution and sensitivity for use with test kits, complex kinetics or spectral measurements.
Getting started with Spectroquant® Prove
Key Industries
- Environmental
- Food & Beverage
