Retsch – Jaw Crushers
Retsch Jaw Crushers are used for the rapid, powerful crushing and pre-crushing of medium-hard, hard, brittle and tough materials. The variety of materials offered, their efficiency and safety make them ideal for sample preparation in laboratories and industrial plants.
Applications
Alloys, basalt, cement clinker, ceramics, chamotte, coal, coke, construction materials, feldspar, glass, granite, minerals, ores, oxide ceramics, quartz, rocks, silicon, slag…
Available Models
| Technical specifications | ||
|---|---|---|
| Applications | Coarse and pre-crushing | |
| Field of application | Agriculture, biology, construction materials, geology / metallurgy, glass / ceramics, medicine / pharmaceuticals | |
| Feed material | Medium-hard, hard, brittle, tough | |
| Size reduction principle | Pressure | |
| Material feed size* | < 40 mm | |
| Final fineness* | < 0.5 mm | |
| Material of grinding tools | Manganese steel, stainless steel, tungsten carbide, zirconium oxide, steel 1.1750 (for heavy-metal free grinding) | |
| Jaw width | 45 x 59 mm | |
| Gap width setting | 0 – 11 mm in increments 0.1 mm | |
| W x H x D closed | 420 x 460 x 560 mm | |
| Net weight | ~ 79 kg | |
| *depending on feed material and instrument configuration/settings | ||

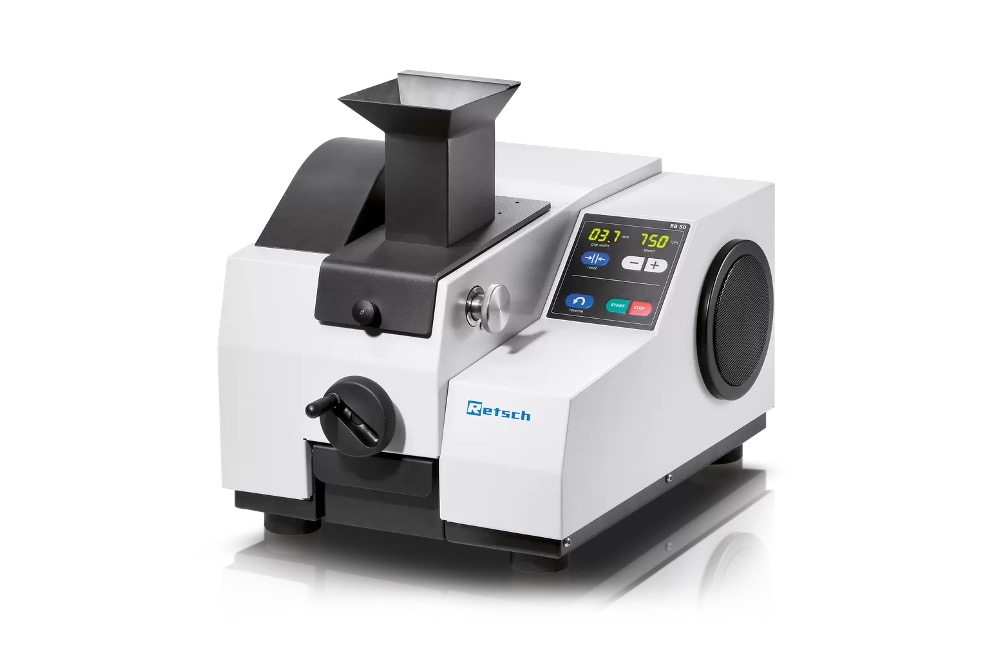

The Jaw Crusher BB 50 has been specially designed for sample preparation in the laboratory. It is used for the rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials.
The space-saving, dust-tight instrument fits on any laboratory bench and is ideally suited to crush small amounts of sample with large feed sizes gently and without loss. To avoid metallic contamination, the grinding chamber of the jaw crusher is available of ceramic materials. With its digital gap width display and zero-point adjustment, the jaw crusher BB 50 allows for reproducible results.
Key features
- Powerful size reduction thanks to 1.1 kW industrial drive
- Compact, benchtop instrument
- Removable jaw for easy cleaning
- Adjustable speed allows adaptation to sample characteristics
- Wear compensation with zero-point adjustment
- Convenient operating keypad with digital display
- Memory for gap width setting
- Wide range of materials for contamination free grinding
- Large fold-back hopper
- Automatic wear-out notification
| Technical specifications | ||
|---|---|---|
| Applications | Coarse and pre-crushing | |
| Field of application | Chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics | |
| Feed material | Medium-hard, hard, brittle, tough | |
| Size reduction principle | Pressure | |
| Material feed size* | < 50 mm | |
| Final fineness* | < 4 mm | |
| Jaw width | 60 x 60 mm | |
| Gap width setting | 0 – 20 mm | |
| W x H x D closed | 320 x 960 x 800 mm | |
| Net weight | ~ 137 kg | |
| *depending on feed material and instrument configuration/settings | ||

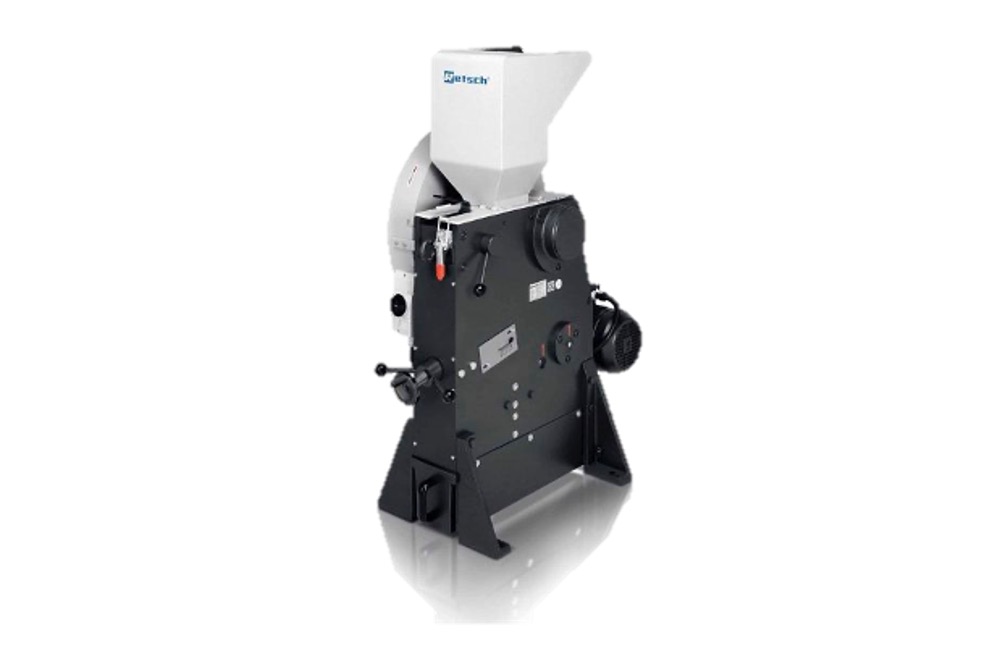

The Jaw Crusher BB 100 is used for the rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials. Its variety of materials offered including heavy-metal free steel, its efficiency and safety make this Jaw Crusher ideal for sample preparation in laboratories and industrial plants.
Key features
- Excellent crushing performance
- Wide range of materials for contamination free grinding
- Wear compensation with zero-point adjustment
- Continuous gap width setting
- Overload protection
- No-rebound feed hopper with quick-release clamp
- Brake motor with safety switch
- Easy-to-clean crushing chamber
- Continuous grinding
- Connector for dust extraction
Read more on our partner’s website
| Technical specifications | ||
|---|---|---|
| Applications | Coarse and pre-crushing | |
| Field of application | Chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics | |
| Feed material | Medium-hard, hard, brittle, tough | |
| Size reduction principle | Pressure | |
| Material feed size* | < 90 mm | |
| Final fineness* | < 2 mm | |
| Material of grinding tools | Manganese steel, stainless steel, tungsten carbide, steel 1.1750 (for heavy-metal free grinding) | |
| Jaw width | 90 x 90 mm | |
| Gap width setting | 0 – 30 mm | |
| W x H x D closed | 450 x 1160 x 900 mm | |
| Net weight | ~ 300 kg | |
| *depending on feed material and instrument configuration/settings | ||

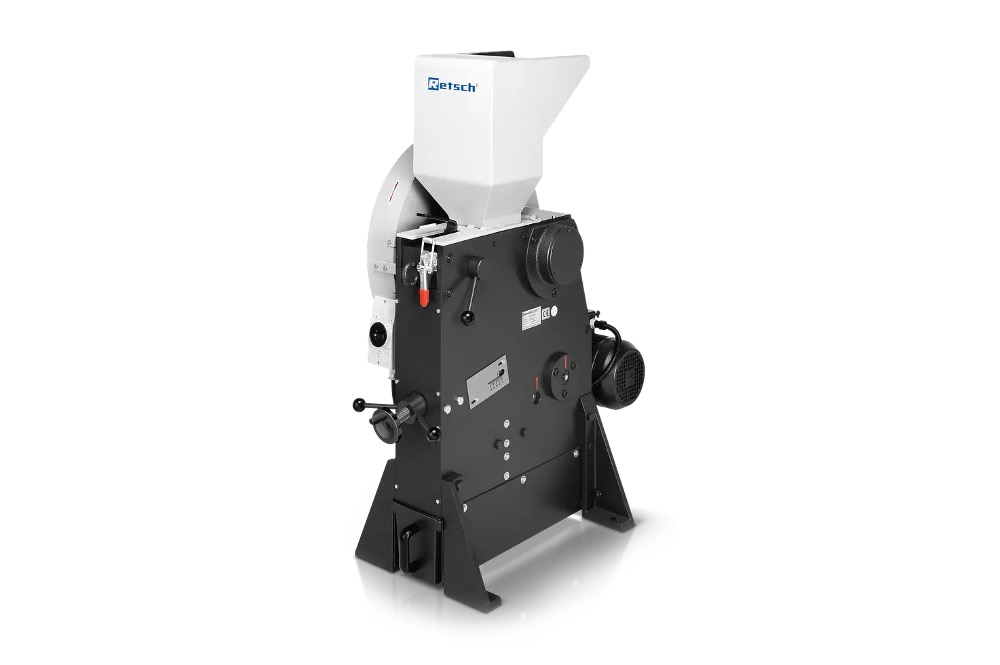

The Jaw Crusher BB 200 is used for the rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials. Its variety of materials offered, including heavy-metal free steel, its efficiency and safety make it ideal for sample preparation in laboratories and industrial plants.
For small amounts of sample, the BB 200 can be used batch-wise; for larger amounts, it can be operated continuously. Control of the gap width and zero-point adjustment allow for reproducible results. The Belleville spring washer protects the Jaw Crusher from overloads and in conjunction with maintenance- and lubricant-free sliding bearings guarantees a long service life.
Key features
- Excellent crushing performance
- Wear compensation with zero-point adjustment
- Infinitely gap width setting
- Overload protection
- Wide range of materials for contamination free grinding
- No-rebound feed hopper with quick-release clamp
- Brake motor with safety switch
- Easy-to-clean crushing chamber
- Continuous grinding
- Connector for dust extraction
- Maintenance- and lubricant-free sliding bearings
- Suitable for integration in automatic installations
- Special version for grinding semi-conductor material
| Technical specifications | ||
|---|---|---|
| Applications | Coarse and pre-crushing | |
| Field of application | Chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics | |
| Feed material | Medium-hard, hard, brittle, tough | |
| Size reduction principle | Pressure | |
| Material feed size* | < 120 x 90 mm | |
| Final fineness* | < 2 mm | |
| Material of grinding tools | Manganese steel, stainless steel, tungsten carbide, steel for heavy-metal free grinding | |
| Jaw width | 120 x 90 mm | |
| Gap width setting | 0 – 30 mm | |
| W x H x D closed | 695 x 1399 x 719 mm | |
| Net weight | ~ 350 kg | |
| *depending on feed material and instrument configuration/settings | ||

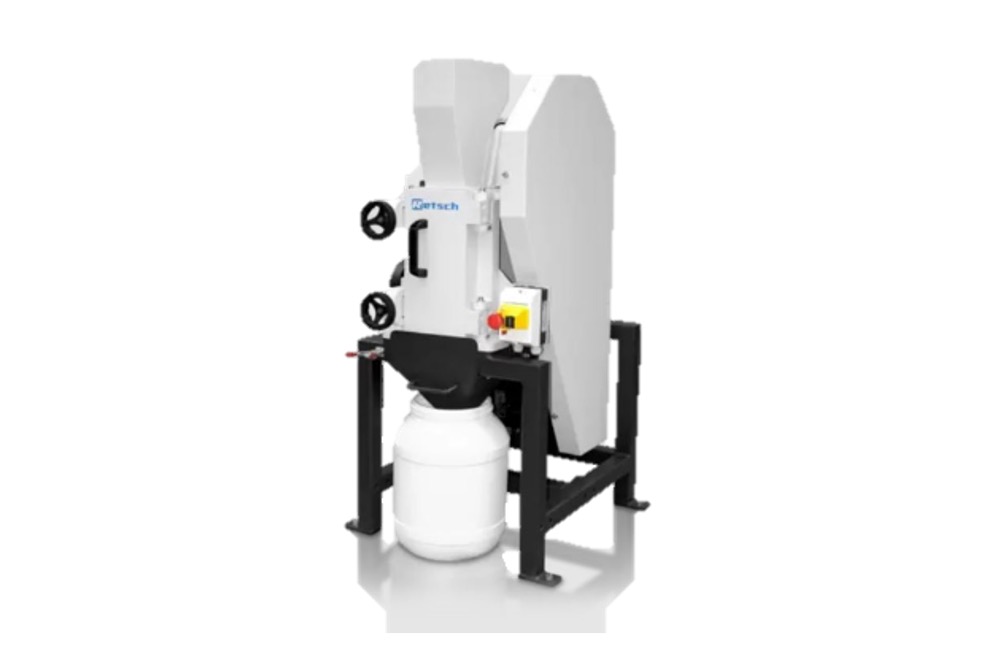

The Jaw Crusher BB 250 is used for the rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials. Its variety of materials offered, including heavy-metal free steel, its efficiency and safety makes this jaw crusher ideal for sample preparation in laboratories and industrial plants.
For small amounts of sample, the BB 250 is used batch-wise; for larger amounts it can be operated continuously. Control of the gap width and zero-point adjustment allow for reproducible results. Thanks to the modular construction of housing and frame this jaw crusher is suitable for a wide range of applications
Key features
- High crushing ratio
- Front door facilitates cleaning
- Infinite/continuous gap width setting
- Overload protection
- Wide range of materials for contamination free grinding
- No-rebound feed hopper, removable
- Sample collector with safety switch
- Collecting receptacle with outlet for continuous operation
- Connector for dust extraction
- Special version with automated sorting of undersize (3 fractions) and oversize (1 fraction) (2 – 6 mm available)
- Special version Jaw Crusher and Sample Divider Combination Unit ABP 250 available (max. 5.6 l, divided in 8 equal parts or 1 part sample)
| Technical specifications | ||
|---|---|---|
| Applications | Coarse and pre-crushing | |
| Field of application | Chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics | |
| Feed material | Medium-hard, hard, brittle, tough | |
| Size reduction principle | Pressure | |
| Material feed size* | < 130 mm | |
| Final fineness* | < 5 mm | |
| Material of grinding tools | Manganese steel, stainless steel, tungsten carbide, steel 1.1750 (for heavy-metal free grinding) | |
| Jaw width | 138 x 198 mm | |
| Gap width setting | 1 – 40 mm | |
| W x H x D closed | 670 x 1450 x 1600 mm | |
| Net weight | ~ 700 kg | |
| *depending on feed material and instrument configuration/settings | ||

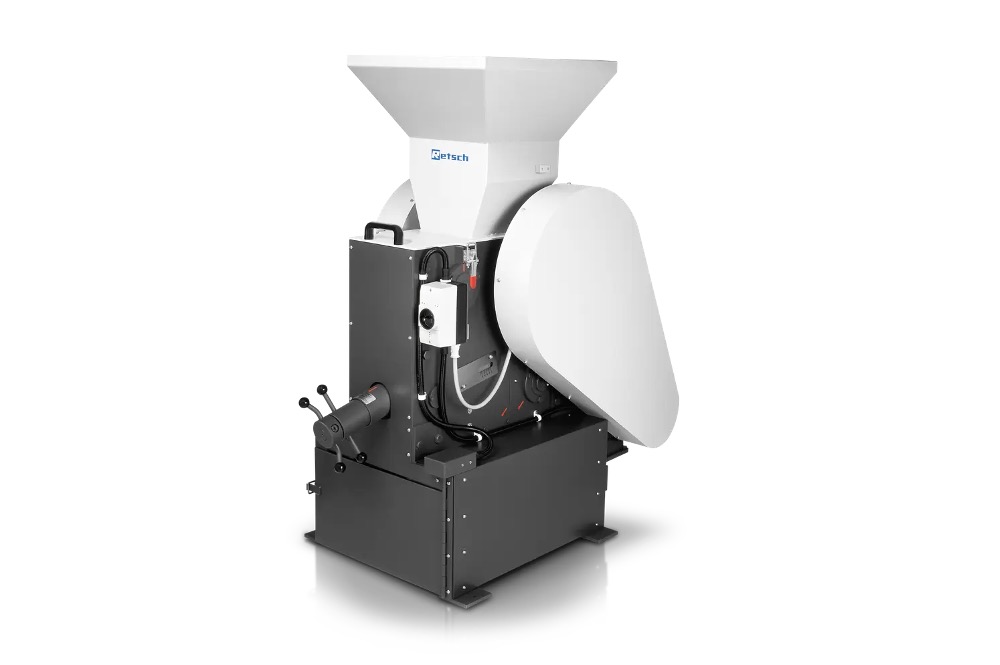

The Jaw Crusher BB 300 is used for the rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials. Its variety of materials offered, including heavy-metal free steel and its efficiency and safety makes the BB 300 ideal for sample preparation in laboratories and industrial plants.
For small amounts of sample, the Jaw Crusher BB 300 can be used batch-wise; for larger amounts it can be operated continuously. Control of the gap width and zero-point adjustment allow for reproducible results. The Belleville spring washer protects the unit from overloads and in conjunction with the central lubrication guarantees a long service life.
Key features
- Excellent crushing performance
- Wear compensation with zero-point adjustment
- Infinitely gap width setting
- Overload protection
- Wide range of materials for contamination free grinding
- No-rebound feed hopper with quick-release clamp
- Brake motor with safety switch
- Easy-to-clean crushing chamber
- Connector for dust extraction
- Central lubrication
- Suitable for integration in automatic installations
- Special version for grinding semi-conductor materials
| Technical specifications | ||
|---|---|---|
| Applications | Coarse and pre-crushing | |
| Field of application | Chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics | |
| Feed material | Medium-hard, hard, brittle, tough | |
| Size reduction principle | Pressure | |
| Material feed size* | < 220 x 90 mm | |
| Final fineness* | < 2 mm | |
| Material of grinding tools | Manganese steel, tungsten carbide, steel for heavy-metal free grinding | |
| Jaw width | 220 x 90 mm | |
| Gap width setting | 0 – 30 mm | |
| W x H x D closed | 695 x 1399 x 719 mm | |
| Net weight | ~ 400 kg | |
| *depending on feed material and instrument configuration/settings | ||

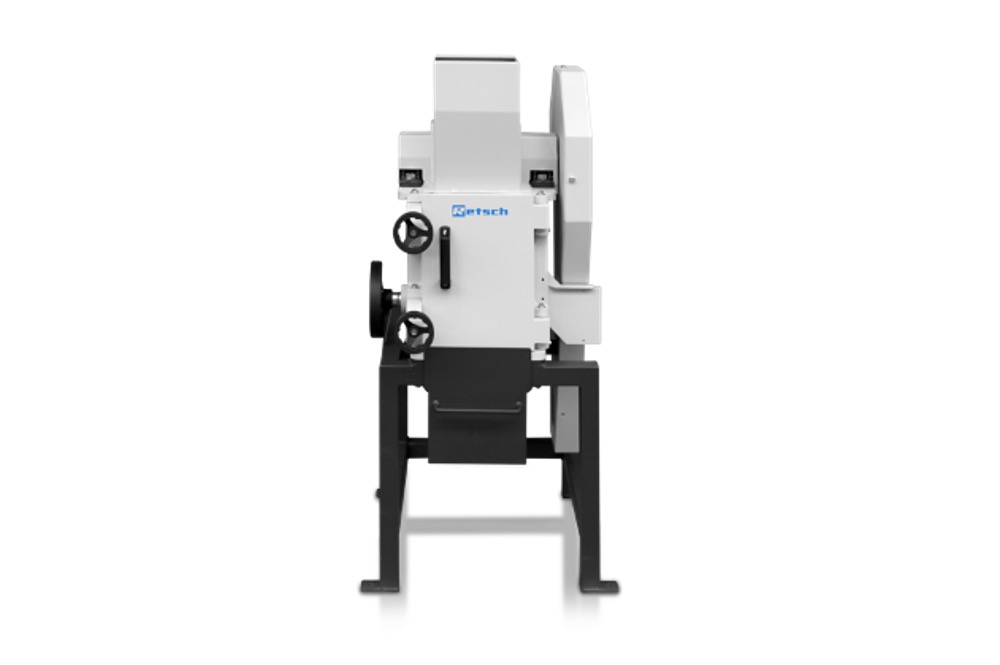

The Jaw Crusher BB 400 is used for the rapid, effective crushing and pre-crushing of medium-hard, hard, brittle and tough materials. Its variety of materials offered, including heavy-metal free steel, its efficiency and safety makes it ideal for sample preparation in laboratories and industrial plants.
For small amounts of sample, the BB 400 is used batch-wise; for larger amounts it can be operated continuously. Control of the gap width and zero-point adjustment allow for reproducible results. Thanks to the modular construction of housing and frame this jaw crusher is suitable for a wide range of applications.
Key features
- High crushing ratio
- Front door facilitates cleaning
- Infinite/continuous gap width setting
- Overload protection
- Wide range of materials for contamination free grinding
- No-rebound feed hopper, removable
- Sample collector with safety switch
- Collecting receptacle with outlet for continuous operation
- Connector for dust extraction
- Special version with automated sorting of undersize (3 fractions) and oversize (1 fraction) (2 – 6 mm available)
| Technical specifications | ||
|---|---|---|
| Applications | Coarse and pre-crushing | |
| Field of application | Chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics | |
| Feed material | Medium-hard, hard, brittle, tough | |
| Size reduction principle | Pressure | |
| Material feed size* | < 110 mm | |
| Final fineness* | 90% < 0.5 mm | |
| Material of grinding tools | Manganese steel | |
| Jaw width | 250 x 130 mm | |
| Gap width setting | 0 – 11 mm | |
| W x H x D closed | 930 x 1400 x 1080 mm | |
| Net weight | ~ 1000 kg | |
| *depending on feed material and instrument configuration/settings | ||
The Jaw Crusher BB 500 is used for rapid, effective, crushing and pre-crushing of medium-hard, hard, brittle and tough materials. Its variety of materials offered, including heavy-metal free steel, and its efficiency and safety makes the BB 500 ideal for sample preparation in laboratories and industrial plants.
For small amounts of sample, the BB 500 is used batch-wise; for larger amounts it can be operated continuously. Control of the gap width and zero-point adjustment allow for reproducible results. The BB 500 with its steep crushing chamber and powerful drive provides for very effective crushing kinematics.
Key features
- High crushing ratio 50:1
- Continuous gap width setting
- Overload protection
- Wide range of materials for contamination free grinding
- Removable no-rebound feed hopper
- Easy-to-clean crushing chamber
- Continuous and batch-wise crushing
- Connector for dust extraction
- Central lubrication (optional)
- Suitable for integration in automatic installations
- Special version for grinding semi-conductor materials
- Special version with automated sorting of undersize (3 fractions) and oversize (1 fraction) (2 – 6 mm available)
| Technical specifications | ||
|---|---|---|
| Applications | Coarse and pre-crushing | |
| Field of application | Chemistry / plastics, construction materials, engineering / electronics, environment / recycling, geology / metallurgy, glass / ceramics | |
| Feed material | Medium-hard, hard, brittle, tough | |
| Size reduction principle | Pressure | |
| Material feed size* | < 350 x 170 mm | |
| Final fineness* | < 6 mm | |
| Material of grinding tools | Manganese steel | |
| Jaw width | 400 x 240 mm | |
| W x H x D closed | 925 x 1600 x 1370 mm | |
| Net weight | ~ 1350 kg | |
| *depending on feed material and instrument configuration/settings | ||

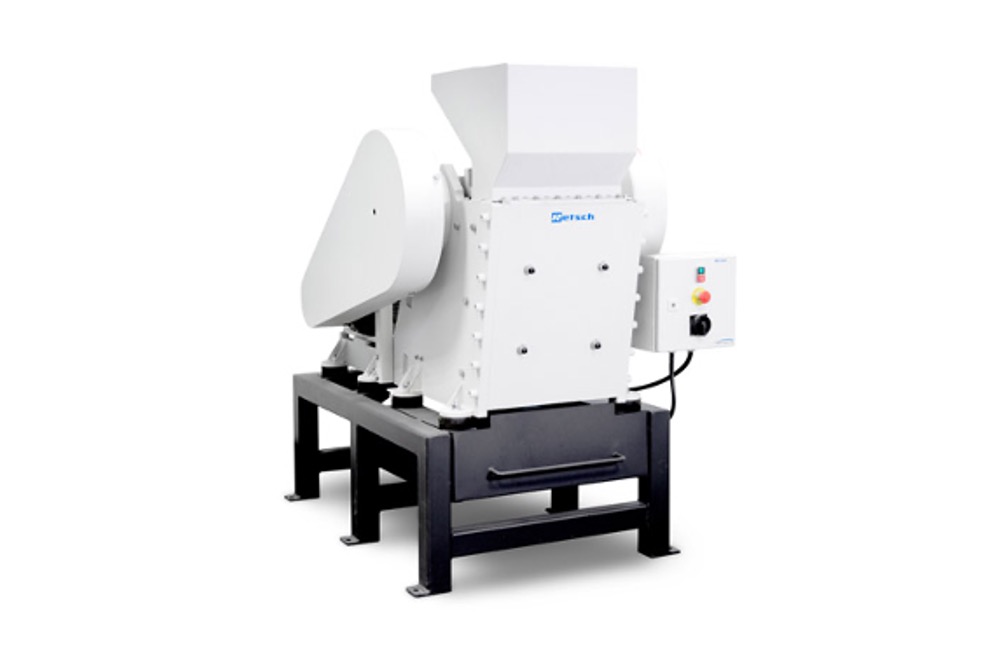

The Jaw Crusher BB 600 is used for rapid, effective, crushing and pre-crushing of medium-hard, hard, brittle and tough materials.
Due to the low installation height (1 m), the BB 600 is ideally suited for continuous operation in automatic installations and sampling stations. Thanks to the compact design of the BB 600 it may replace a jaw crusher in existing installations. Small sample amounts with large particle sizes can be crushed batch-wise in the Jaw Crusher BB 600.
Key features
- High crushing ratio
- High throughput up to 3,500 kg/h
- Adjustable gap width setting
- Overload protection
- Size of breaking jaws 600 mm high / 400 mm wide
- No-rebound feed hopper
- Easy-to-clean crushing chamber
- Continuous and batch-wise crushing
- Connector for dust extraction
- Central lubrication (optional)
- Suitable for integration in automatic installations
- Special version with automated sorting of undersize (3 fractions) and oversize (1 fraction) (2 – 6 mm available)
